ST03

Y-Type Strainer – ST03

Size Range 2" - 12"
Temp Range -196°C to +425°C
Pressure Ratings ASME Class 150
Request a Quote

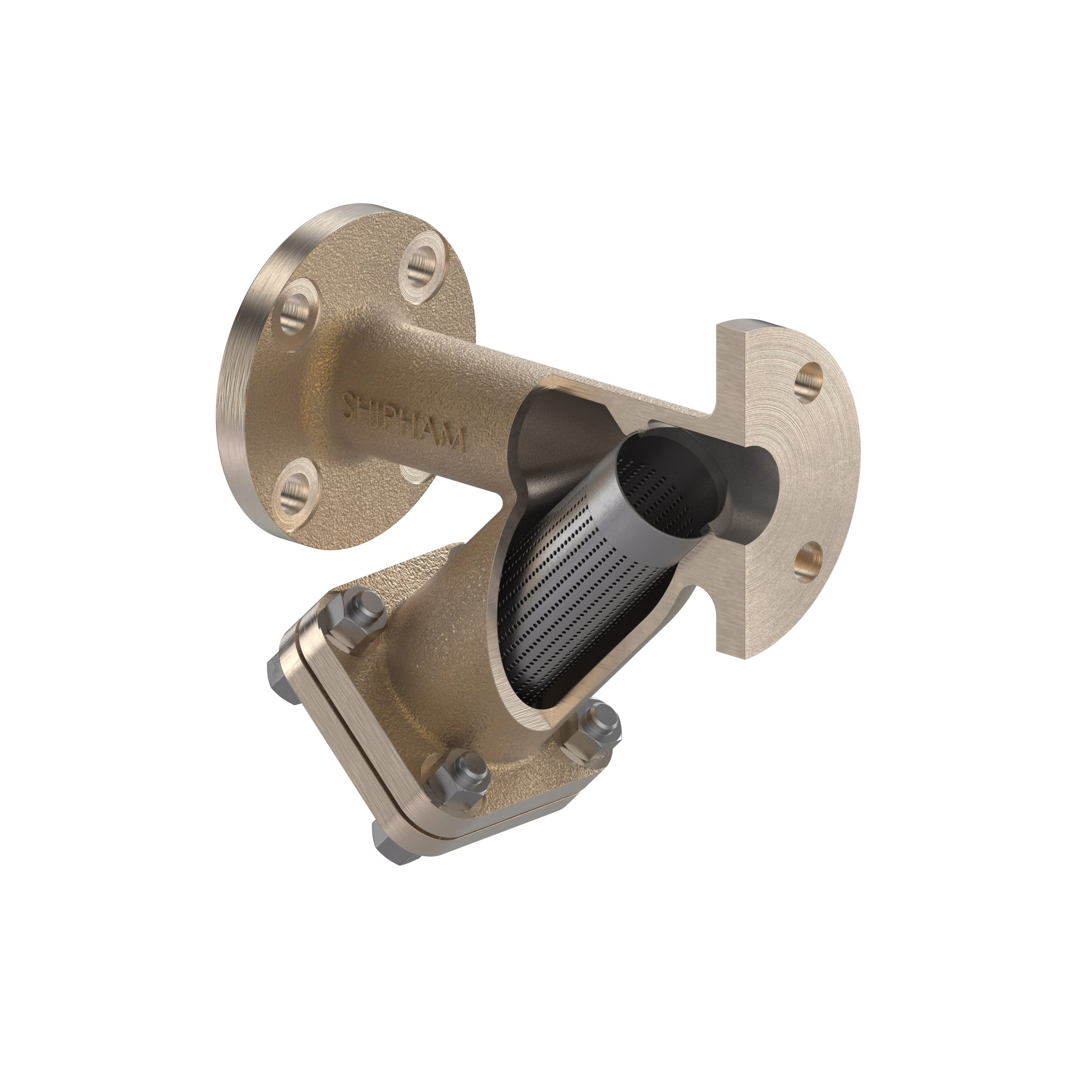

Y-Type Strainer - ST03 with Bolted Bonnet Style available in sizes 2"- 12"Y-Type Strainer - ST03 with Bolted Bonnet Style available in sizes 2"- 12"

Specifications

Technical Data

Size Range

2" - 12"

Temperature Range

-196°C to +425°C

Pressure Ratings

ASME Class 150

Body Style

Bolted Bonnet

End Connections

ASME B16.5

Shut Off Class

API 598 (Shell test only)

MATERIALS OF CONSTRUCTION

Body Materials

6Mo, Bronze, Duplex, Hastelloy® B, Hastelloy®C, Inconel® 625, Inconel® 825, Monel®, Nickel Aluminium Bronze, Super Duplex, Titanium

Obturator materials

Nickel Aluminium Bronze, Monel®, Bronze, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 825, 6Mo, Hastelloy® B, Hastelloy® C

Seal Materials

PTFE, Graphite

DESIGN STANDARDS & APPROVALS

Valve Design

ASME B16.24, ASME B16.34

Face to Face

ASME B16.10 (Flanged),
Manufacturers Standard (Threaded)

Accreditations

PED 2014 / 68 / EU

Product Overview Benefits
Y-Type Strainer - ST03 with Bolted Bonnet Style available in sizes 2"- 12"

Y-Type Strainer – ST03

Request a Quote

The benefits of the ST03 Bolted Bonnet Y-T Strainer include:

  • The bolted bonnet design provides high integrity sealing joint
  • Element mesh sized to ensure particulate removal from fluids
