Triple Offset Butterfly Valves

Triple-Offset valves use three offsets to create a high performance and low friction seal.

The fundamental feature of the valve design is the three offsets, these are highlighted in the 3D figure below:

Offset 1 – an offset between the shaft centreline and seat

Offset 2 – an offset between the centreline of the pipeline and the valve shaft

The valve shaft is offset from the centre line in both the X and Y axis, which makes up the first two offsets.

Offset 3 – An angular offset of the seating faces creating the conical geometry of the seat faces

The third offset consists of a conical angle on the sealing faces meaning the sealing faces only come into contact at the point of sealing.

Each Triple-Offset Butterfly Valve can be offered with either flat-face or raised-face flanges.

Flat face flange – gasket face is flat and on the sane face as the bolting face (see image below)

Raised face flange – Gasket surface is raised above the bolting face.

The triple-offset range is available in the three main body configurations.

BU04 –Wafer-Type Raised Face & Flat Face availability

Designed in accordance with API609 Cat. B.

Don’t have attachment lugs.

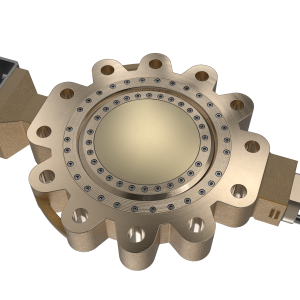

BU05 –Lug-Type Raised Face & Flat Face availability

Designed in accordance with API609 Cat. B.

The lug body has protruding lugs in the periphery of the body, which provides a passage to the bolt holes that match with those in the flanges.

The Lugged body design model provides a cost-effective solution for non-critical services whereas the double-flanged model provides a standardised connection suitable for critical services.

BU06 – Double-Flanged, Raised Face and Flat Face availability

Designed in accordance with API609 Cat. B.

The inlet and outlets have a flanged connection.

Our Triple Offset Butterfly Valve range comprises of various user features, which reflects Shipham Valves technical expertise in valve design, product engineering, unparalleled understanding of user needs and market knowledge.

These include:

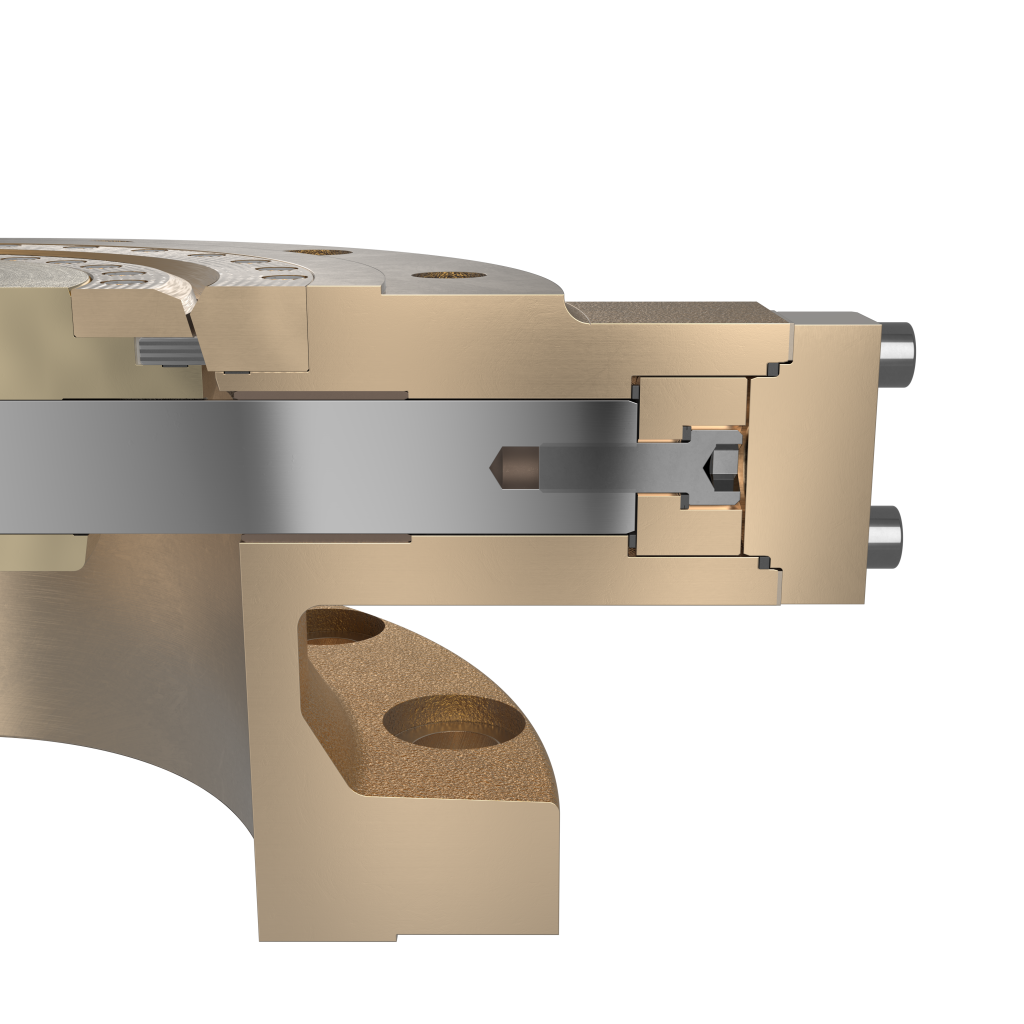

Anti-Blowout Design

• Designed with anti-blowout features included as standard to help prevent the valve shaft from being ejected from the valve
• The anti-blowout device is located at the bottom end of the shaft – preventing the stem blowout from the top of the valve
• In accordance with API 609 requirements, the valve endcap is bolted to the bottom end of the valve and prevents stem blowout from the valve bottom

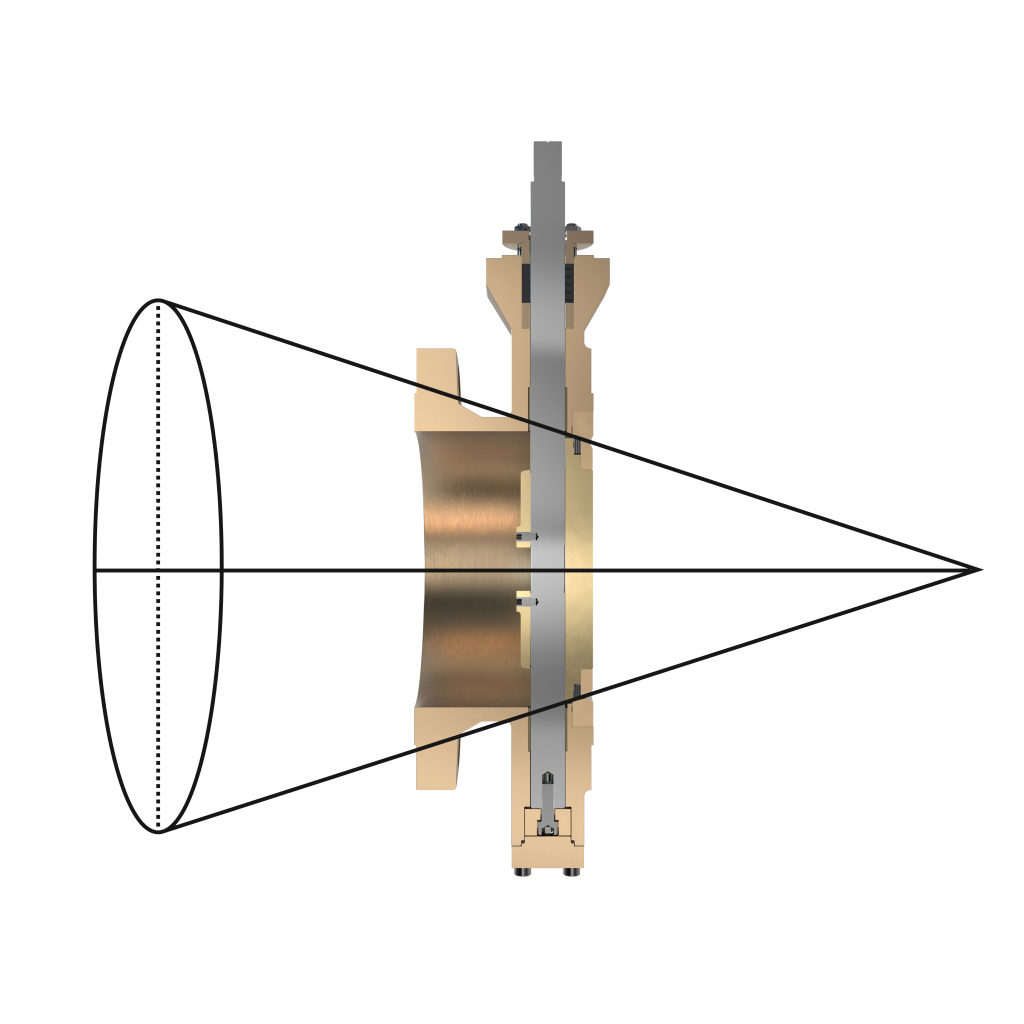

Conical Seat Geometry

• Our Triple Offset design employs a uniform profile around the conical sealing face to ensure effective sealing is achieved

This range offers extensive design features that deliver various user benefits including:

Performance

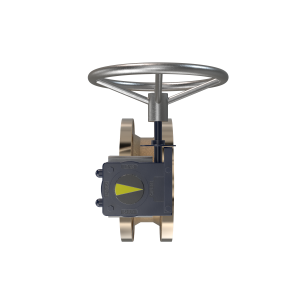

• Enables fast opening / closing quarter turn operation
• High performance across a diverse range of applications
• Prolonged valve service longevity with the triple-offset design removing seat wear

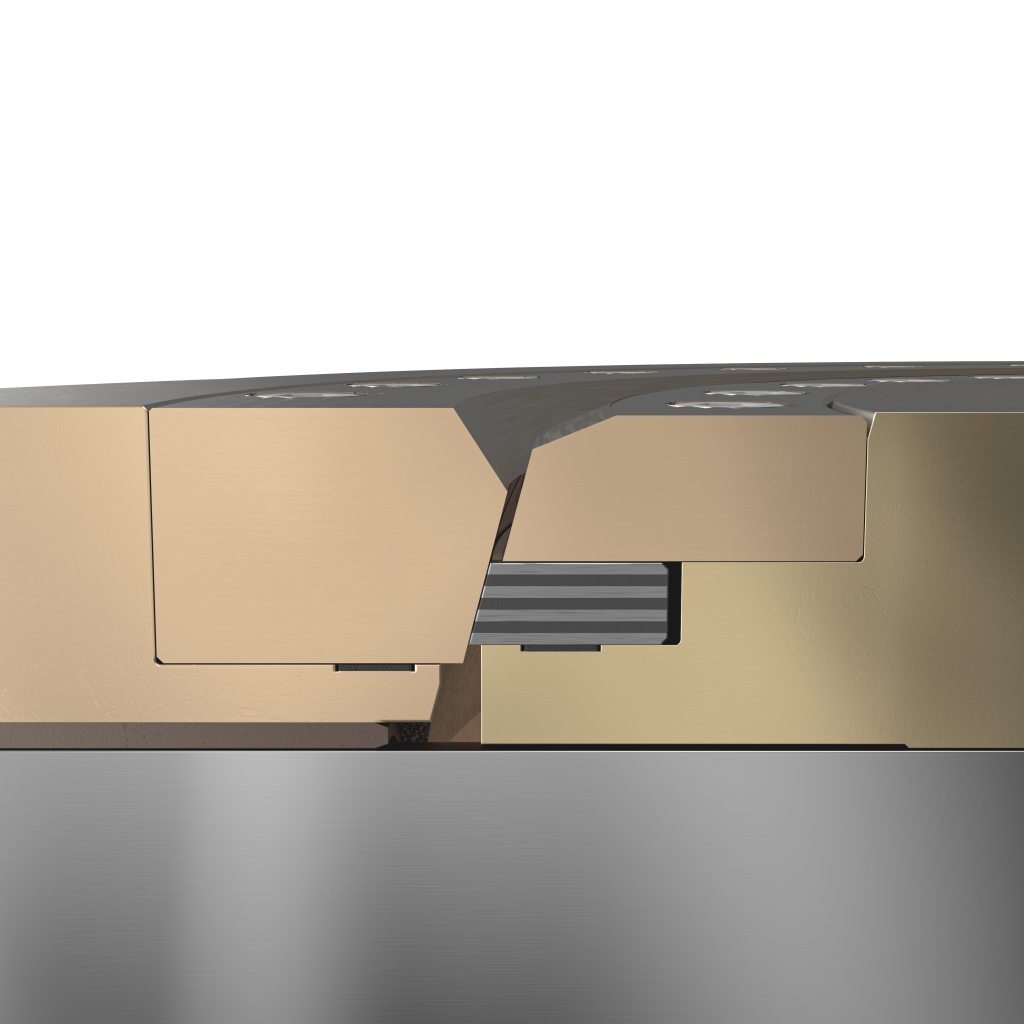

• Laminated metal seat arrangements provide zero-leakage bi-directional sealing
• Suitable for use on critical service applications

Design

• Designed fully in accordance with API609 Cat B
• Certified Firesafe design
• Low friction design resulting in an extended seal service life
• Compact design – when compared to other metal seated isolation valves such as Gate Valves
• Peace of mind – multiple Anti-blowout devices integrated into the product to ensure stem retention under all future conditions

Certification and Accreditation

• Firesafe certification in accordance with API607

Actuation

• Standard mounting interfaces enable easy actuation
• Accurate actuation sizing made possible due to low operating torques

This new Triple-Offset Butterfly range supports multiple industries and various diverse applications, some of which are highlighted below:

• Chemical industries and processing
• Desalination
• Energy and power generation
• LNG storage and transportation
• Marine
• Oil and Gas (Midstream and downstream applications)
• Petrochemical
• Pulp and paper
• Pharmaceutical
• Refining
• Steam shut-off
• Steel production plants
• Water industry and wastewater treatment

This range provides the ideal valve solution to underpin various industry-specific applications ranging from critical isolation, cooling water systems, and seawater injection. In-addition to LNG tank flow control and storage and LNG fire main bypass applications.

Some further applications supported are highlighted below (but not limited too):

• Bio-ethanol plants
• Carbon capture and storage
• Chemical solvents
• Cooling water systems
• Critical isolation
• Cryogenic liquids
• Desalination
• Downstream applications – LNG circulation and tank flow control
• Hot gases
• Hot water control systems
• Hydrocarbon and chemical isolation (at low pressures)
• Hydrogen processing and propane gas
• Isolation of reservoirs
• LNG – production and storage
• Midstream applications – liquid transfer
• Seawater control
• Steam piping and condensate
• Steam and water injection
• Thermal fluids
• Water storage tank isolation

The Triple Offset range is ideal for applications with:

• High-temperature
• Severe service
• Isolation requirements
