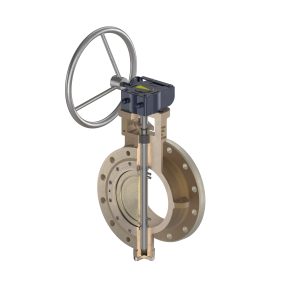

New Triple-Offset Butterfly Valves’ Unique Design Features
To coincide with celebrations of Shipham Valves reaching its 225th year of operation, the business is delighted to expand its range of high-performance butterfly valves, with the launch of a new innovative range of triple-offset butterfly valves.
Triple-Offset Butterfly Valves Design Features
Several unique design features are incorporated in this range to reflect the wide range of applications they support, delivering a high-performance, robust and effective through-life isolation valve solution. As well as providing weight and space-saving benefits, the anti-rotational laminated seat design ensures no movement in service to maintain consistent sealing performance, when compared to a clamped design.
Effective Sealing
Shipham Valves’ Triple-Offset design delivers fast opening and closing quarter turn operations and employs a uniform profile around the conical sealing face to ensure effective sealing is achieved.
Three different body types available include:
- BU04 – Wafer-Type
- BU05 – Lug-Type
- BU06 – Double-Flanged
Shipham Valves, Head of Engineering & Quality, Nick Gray comments “We are pleased to announce the launch of our brand-new range of Triple-Offset Butterfly Valves. This new range has undergone a comprehensive product design, development verification and validation process to deliver a high-performing, effective and robust triple-offset butterfly valve solution meeting all the requirements of an API 609 Cat. B product.
Nick continues “For total reassurance, our triple-offset range design is fire-safe certified in accordance with API 607, which provides fire test criteria for quarter-turn valves with non-metallic seating, when the valves are exposed to certain fire conditions and pressure”.
Different sizes and different pressure available
Shipham Valves’ Triple-Offset Butterfly Valves are available in different sizes and pressure classes, depending on your specific requirements. All our valves are manufactured to meet the highest industry standards and reflect our technical expertise in the valve design, product engineering and market knowledge.
The Triple-Offset range is ideal for applications with:
- High temperature
- Severe service
- Isolation requirements
Different sizes and pressure classes available
Shipham Valves’ Triple-Offset Butterfly Valves are available in different sizes and pressure classes, depending on your specific requirements. All our valves are manufactured to meet the highest industry standards and reflect our technical expertise in the valve design, product engineering and market knowledge.
The Triple-Offset range is ideal for applications with:
- High temperature
- Severe service
- Isolation requirements
Benefits
And deliver benefits such as:
- High performance – across a diverse range of applications
- Valve service longevity – triple-offset design removing seat wear
- Laminated metal seat arrangements provide zero-leakage bi-directional sealing
- Zero leakage sealing performance – in accordance with API 598
- Peace of mind – multiple anti-blowout features to ensure stem retention under all future conditions
- Certified Firesafe design
- Compact design – when compared to other metal seated isolation valves
- Standard mounting interfaces enable easy actuation
Sizes and specialist materials of construction
We can manufacture this range in sizes from 3″ – 24″ in a wide range of specialist materials, including 6Mo, Bronze, Duplex, Hastelloy® B, Hastelloy® C, Inconel® 625, Inconel® 825, Monel®, Nickel Aluminium Bronze, Super Duplex, Titanium, with the option of manufacturing additional sizes.
How can we help?
Our Internal sales team can provide further information about our Triple-Offset Butterfly Valve range at valvesales@shiphamvalves.com or by calling +44 (0)1482 323163.
Reference Standards
For total reassurance, this new range has been designed in accordance with the following standards:
| Valve Specification | Standards |
| Valve Design | API 609 Cat. B – Butterfly Valves: Double-Flanged, Lug and Wafer-Type and
Butt-Welding Ends ASME B16.34 – Valves – Flanged, Threaded and Welding End |
| Face to Face | API 609, Lug and Wafer-Type and Double-Flanged Short Pattern
ASME B16.10 – Valves – Flanged, Threaded and Welding End |
| Pressure Testing | API 598 – Valve Inspection and Testing |
| Shut Off Class | API 598 (Zero Leakage) – Valve Inspection and Testing
ISO 5208 Rate A – Industrial Valves – Pressure Testing of Metallic Valves |
| Fire testing | API 6-7 – Industrial Valves – Pressure Testing of Metallic Valves
BS EN ISO 10497 – Testing of Valves – Fire Type Testing Requirements |
| Fugitive Emissions | API 641 |
| Accreditations | PED 2014 / 68 / EU
PE(S)R |
