Double Offset Butterfly Valve with double-flanged body

Specifications

Technical Data

Size Range

2" - 24"+ (Larger sizes upon request)

Temperature Range

-46°C to +232°C

Body Style

Double Flanged

Operator

Latch-Lock Lever, Gearbox

Shut Off Class

API 598 (Zero Leakage), ISO 5208A

MATERIALS OF CONSTRUCTION

Body Materials

6Mo, Bronze, Duplex, Hastelloy® B, Hastelloy® C, Inconel® 625, Inconel® 825, Monel®, Nickel Aluminium Bronze, Super Duplex, Titanium

Obturator materials

Nickel Aluminium Bronze, Monel®, Bronze, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 825, 6Mo, Hastelloy® B, Hastelloy® C

Stem Materials

Monel®, Duplex, Super Duplex, Titanium, Inconel® 718, Hastelloy® B

Seal Materials

PTFE, Graphite

DESIGN STANDARDS & APPROVALS

Valve Design

API 609 Cat. B

Face to Face

API 609, Table X

Pressure Testing

API 598

Accreditations

PED 2014 / 68 / EU

Downloads Product Overview Benefits

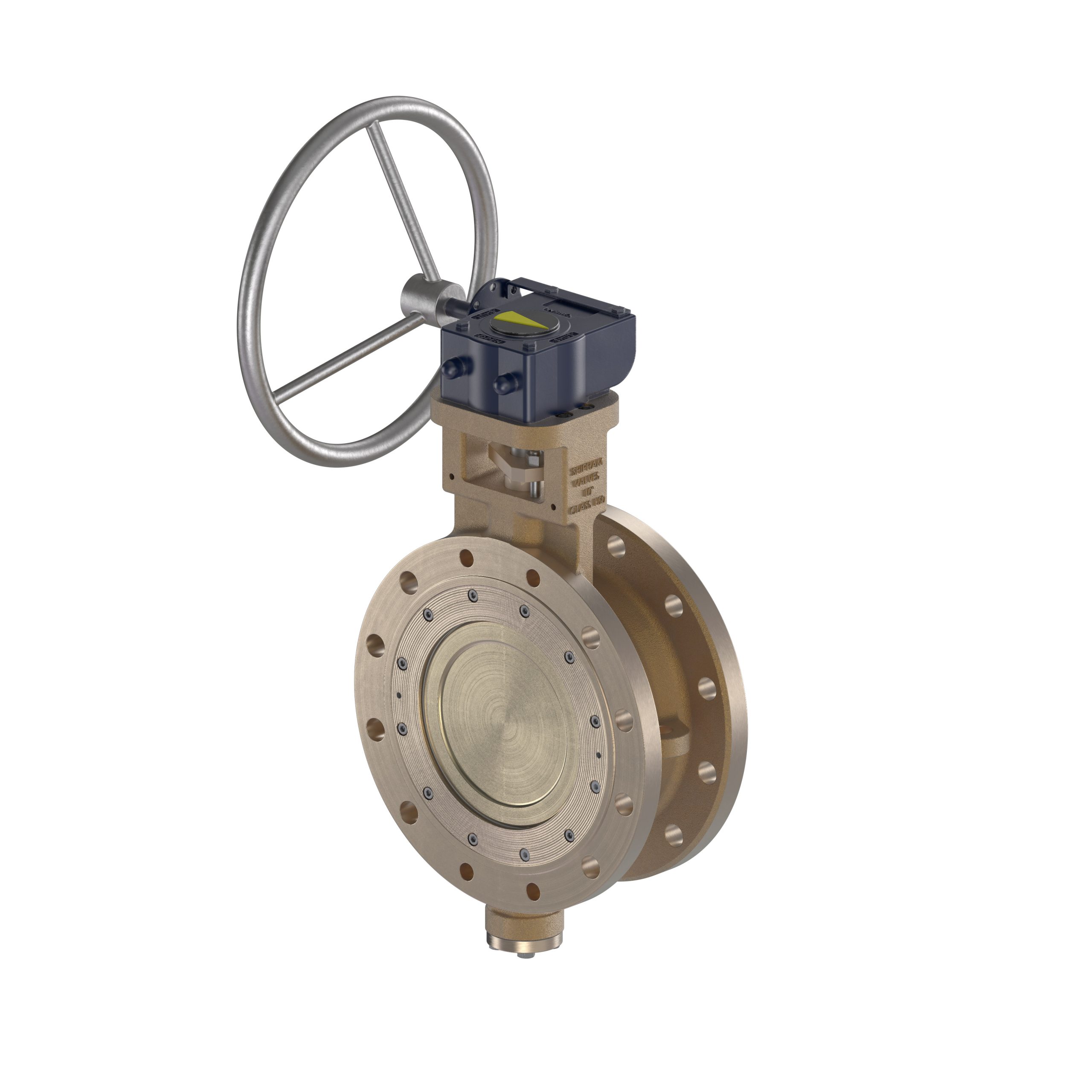

Shipham Valves Double Offset Butterfly Valve with double flanged body BU03

Double-Offset Butterfly Valve – BU03

Request a Quote

The benefits of the BU03 Double-Offset Double-Flanged Style Butterfly Valve include:

Double-flanged body design provides a standardised connection suitable for critical services
Soft seat arrangement provides zero-leakage bi-directional sealing
The secondary metal seat provides a fire-safe seal in the event of a fire, qualified to ISO 10497
The double-offset design ensures cam action reduces seat wear prolonging seat life
Standard mounting interface(s) enable easy actuation

Double-Offset Butterfly Valve Technical Sales Manual

Download
